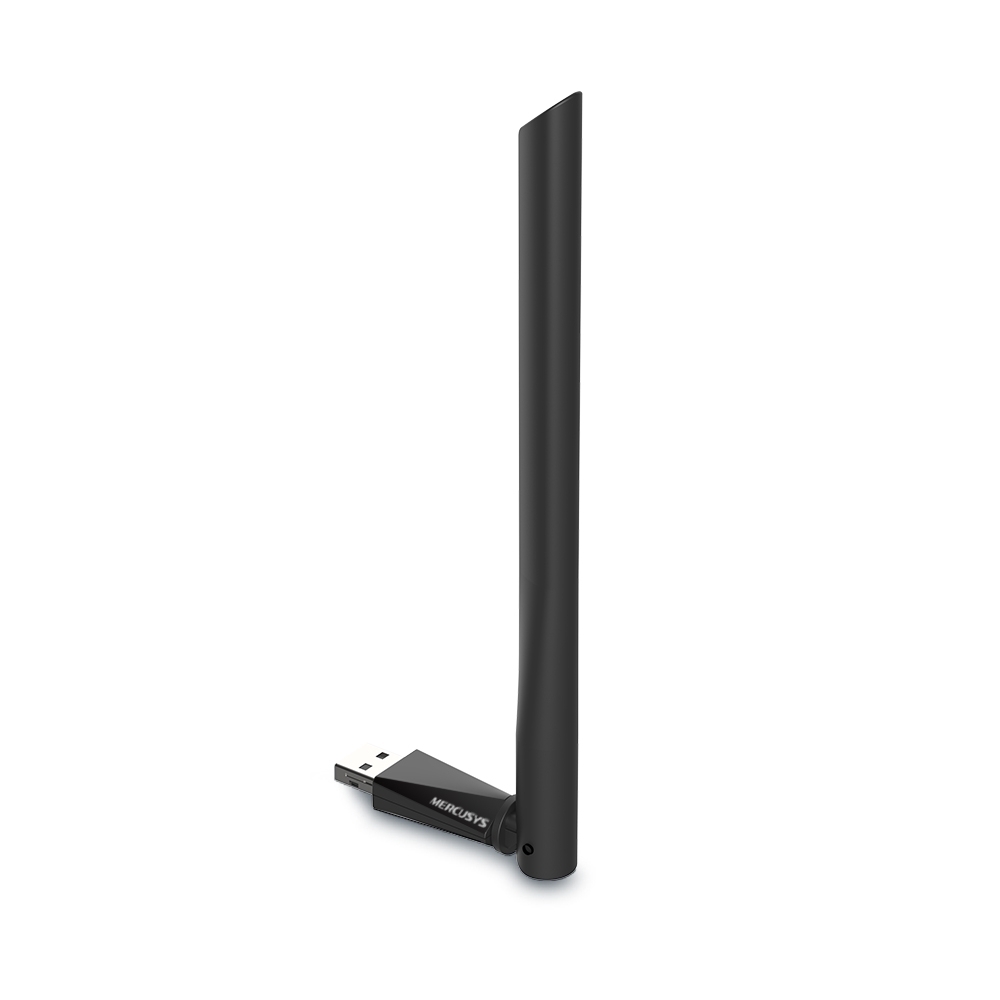

Tarjeta de Red y Adaptador MERCUSYS MU6H, High Dual Band AC650, Inalámbrico, 2.4 GHz - 5 GHz, Negro, 5 dBi
- High-Speed Dual-Band Wi-Fi: 256-QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps. Enjoy speeds of up to200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, to take full advantage of your AC Wi-Fi.
- High-Gain Antenna: A 5dBi high-gain antenna greatly enhances the reception and transmission strength of the USB adapter
- Internal Driver: Smart easy-install for Windows operating system
- Supports the Latest Operating Systems: Fully compatible with Windows 10/8.1/8/7/XP
Antenna Type |
1 External High Gain
5dBi Antenna
|
Dimensions (W X D X H) |
2.28 × 0.66 × 6.83 in
(57.8 × 16.8 × 173.4 m)
|
Wireless Standards |
IEEE 802.11b/g/n
IEEE 802.11a/n/ac
|
Wireless Security |
WEP, WPA/WPA2,
WPA-PSK/ WPA2-PS,
802.1X
|
System Requirements |
Windows10/8.1/8/7/XP
|
Interfaces |
USB 2.0
|
Frequency |
2400 MHz -2483.5 MHz
5150 MHz -5250 MHz
5250 MHz -5350 MHz
5470 MHz -5725 MHz
|
LED |
Status
|
Signal Rate |
• 11ac: Up to 433Mbps (Dynamic)
• 11n: Up to 200Mbps (Dynamic)
|
Reception Sensitivity |
• 433M: -62dBm@10% PER
• 200M: -65dBm@10% PER
• 54M: -75 dBm@10% PER
• 11M: -90 dBm@8% PER
|
Package Contents |
1. AC650 High Gain Wireless Dual Band USB Adapter ( MU6H )
2. Quick Installation Guide
|
DETALLES TÉCNICOS
Rango de frecuencia
2400 - 5725 MHz
WLAN velocidad de transferencia de datos, soportada
200,433 Mbit/s
Ganancia de la antena (max)
5 dBi
Tipo de antena
Omni-direccional
Estándares de red
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Conectar y usar (Plug and Play)
SI
CONTENIDO DEL EMBALAJE
Guía de instalación rápida
SI
